| SHELL AND TUBE CONDENSERS |
|
Shell and tube condensers for ammonia or freon, horizontal
arrangement, with two bearing plates.
All surfaces are perfectly brush painted with a priming coat of anticorrosive
zinc chromate paint. |
 |

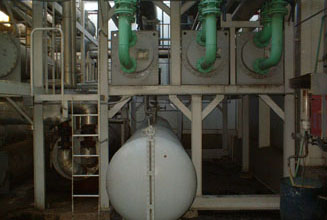

| Condensers mounted at a food industry |
|
 |

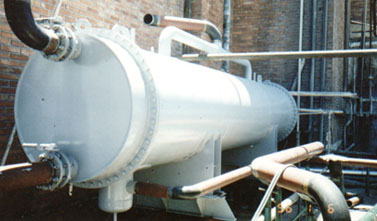

| shell and tube condenser |
|
| AMMONIA-SIDE |
Operating pressure:
Design Pressure:
Test Pressure:
Operating temperature: |
14 Kgs/cm²
18 Kgs/cm²
27 Kgs/cm²
30 ºC |
|
| WATER-SIDE |
|
Operating Pressure:
Test Pressure:
Operating temperature:
|
2,5 Kgs/cm²
5,0 Kgs/cm²
35ºC |
|
| Heat exchanging surface: |
from 40 m² up to 300 m² |
| Shell diameter: |
from 300 mm up to 1500 mm |
| Length of tubes: |
6,10 mts. |
| Diameter of tubes: |
1", triangular pitch, broached and welded to the tube
sheets. |
| Material for tubes: |
ASTM-A-53 Gr.B without seam, sch 40. |
| Material for shell: |
ASTM 516 Gr 70 |
| Material for tube sheets: |
A-36 |
| Material for heads: |
A-36 |
| Number of water passages: |
According to design |
|
 |

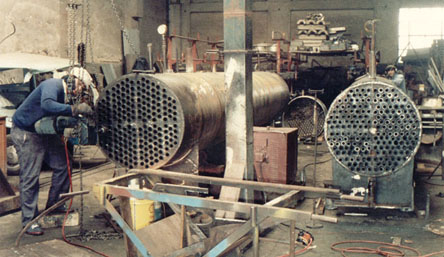

| Manufacturing at REFRIN workshop |
|
 |
| Manufacturing at REFRIN workshop |
|
| AMMONIA-SIDE CONNECTIONS |
|
Inlet:
Outlet:
Equalization:
Double type safety valve:
Vacuum:
Pressure gauge:
Oil purge:
Air purge:
|
ASTM-A-53 Gr.B Sch.40 with welded standard valve.
ASTM-A-53 Gr.B Sch.40 with welded standard valve.
ASTM-A-53 Gr.B Sch.80 with welded standard valve.
ASTM-A-53 Gr.B Sch.80.
ASTM-A-53 Gr.B Sch.80.
ASTM-A-53 Gr.B Sch.80.
ASTM-A-53 Gr.B Sch.80, with standard valve
ASTM-A-53 Gr.B Sch.80, with standard valve. |
|
| WATER-SIDE CONNECTIONS |
|
Inlet:
Outlet:
Drainage:
Air purge:
|
with welded flange and counter flange
ASA 150, and a diaphragm valve.
with welded flange and counter flange ASA 150, and a diaphragm
valve.
with valve.
with valve. |
|
APPLICABLE CODES AND STANDARDS
FOR DESIGN
ASME VIII - Div. I
ITEM ANSI
A name-plate, showing the design and operating parameters is
supplied with the equipment.
An approved hydraulic pressure test certificate, signed by the
M.B.S. of Buenos Aires is provided with the condenser. |
|
 |
| Engine room - Pillsbury (Delicity) |
|
|
