VERTICAL EVAPORATIVE CONDENSERS versión en español
spanish version
MAIN CHARACTERISTICS And ADVANTAGES
• 25% more efficient than the horizontal condenser. Direct and vertical flow of the refrigerant avoids oil sediments.
• Easy cleaning of tubes.
• No need of cooling tower, necessary when using a shell and tube condenser. 15% energy saving, compared with the shell and tube condenser - cooling tower assembly.
• Wide front with small depth of tubes, combined with proper water and air flows, obtain a highly efficient equipment.
• Compact unit that requires less space.

COILS
Steel manufactured according to A.S.T.M. codes, 3/4" diameter, hot-dip galvanized.

WATER-DRAINAGE TRAY
Steel manufactured, S.A.E. 1010, sheet of 1/8" thickness, covered with chlorinated rubber paint.

Alternative: galvanized steel, stainless steel A.I.S.I. 304, or F.R.P.

Vertical evaporative condensers
Vertical evaporative condensers

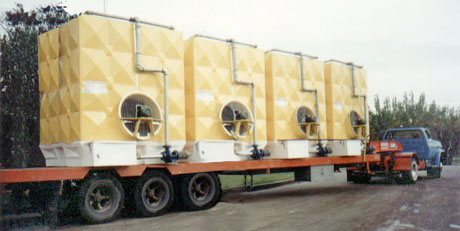

Transportation of vertical evaporative condensers

WATER DISTRIBUTION SYSTEM
Exclusive design that allows water to wet the external face of all the tubes, by means of a recirculating water pump, in order to obtain maximum evaporation.

AXIAL FANS
Fused aluminum fans of maximum flow in order to improve evaporation efficiency. Framework in steel, hot-dip galvanized.

CASING
Completly manufactured in galvanized steel sheet, 1.5mm thickness. All bolts are cadminum plated.
Alternative: F.R.P. or stainless steel.

DRIFT ELIMINATOR
Completely manufactured in high impact polyethylene, highly efficient, with minimum loss of head, totally demountable.

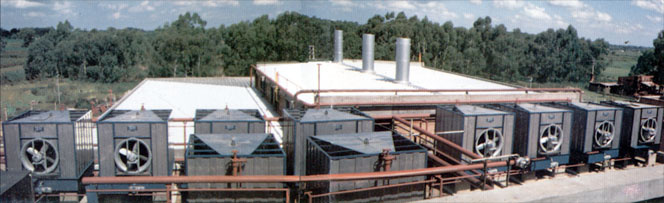

Vertical evaporative condensers mounted at a food industry
