SEPARATORS (AMMONIA or FREON)
Vertical liquid separator

Provision of vertical or horizontal liquid separators, for ammonia or freon recirculation systems.

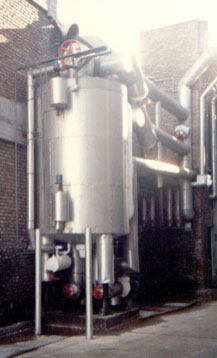

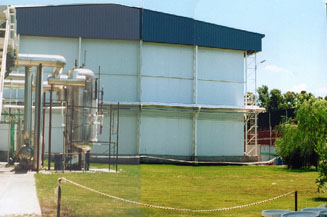

Vertical liquid separator

The design, manufacturing, weldings, inspections and tests, follow the norms and regulations of 8 section div. I of ASME code, for pressure vessels. Hydraulic test up to 24 Kg/cm². An approved hydraulic test certificate, signed by the M.B.S. of Buenos Aires is provided with the equipment.
In the inside upper zone, the separator has a drop eliminator.

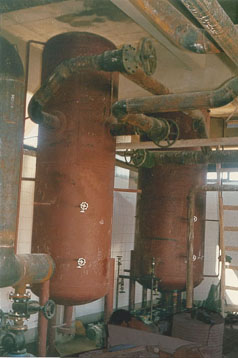

Vertical liquid separator in machine room

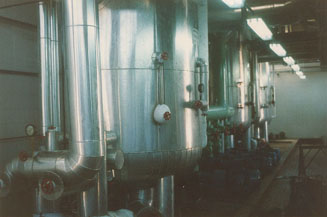

Several vertical liquid separators in block
All surfaces are perfectly painted, with a priming coat of anticorrosive zinc chromate paint.

All pipes are manufacturated whit seamless steel tubing ASTM-A-53 Sch.80 for diameters up to 1 ½" and Sch.40 for diameters over 2".

According to ASME code, a thermal treatment of annealing is given to the receiver, in order to lower the inside stresses due to weldings.
DESIGN DATA

Operation Temperature:
Design Pressure:
Test Pressure:
Capacity:
Disposition:
Caps:
Outer cylinder diameter:
Cylindrical length:
Material:
Minimum thickness:
Supports:
Cradles:

 +10/-45°C
14 Kg/cm²
21 Kg/cm²
100.000 to 2.500.000 Kcal/Hr.
Vertical
Semi elliptical
300 to 1,800 mm.
3,000 mm.
ASTM A-516 Gr.70
1/4"to 1"
3(three)
3(three)
CONNECTIONS

Quantity

Return line gas-liquid
Suction line from compressors
Aspiration pumps
Liquid inlet
Dual safety valve
Visual level control
Automatic level control
Gas purge of pumps
Oil purge
Pressure gauge
Vacumm line

1
1
2
1
1
1
4
2
1
1
1
