| RECEIVERS
(AMMONIA or FREON) |
| Liquid ammonia or freon recivers with different capacities. The design, manufacturing, weldings, inspections
and tests, follow the norms and regulations of 8 section
div. I of ASME code, for pressure vessels. Hydraulic test up to 24 Kg/cm². An approved hydraulic test certificate, signed by the M.B.S. of Buenos Aires is provided with the equipment. |
 |
| Receiver |
|
 |

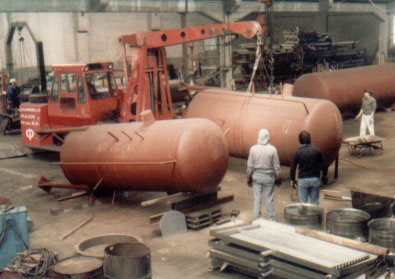

| Vessels during manufacturing process at Refrin workshop |
|
The receiver includes a bottom dome Ø 12" x 300 mm for
oil purge, and a reflex liquid level.
All surfaces are perfectly painted, with a priming coat of anticorrosive zinc chromate paint.
All pipes are manufacturated whit seamless steel tubing ASTM-A-53
Sch.80 for diameters up to 1 ½" and Sch.40
for diameters over 2".
According to ASME code, a thermal treatment of annealing is given to the receiver, in order to lower the inside strsses due to weldings. |
|
| DESIGN DATA |
| Operation Temperature:
Operation Pressure:
Design Pressure:
Test Pressure:
Capacity:
Disposition:
Caps:
Outer cylinder Diameter:
Cylindrical length:
Material:
Minimum thickness:
Supports:
Cradles: |
35°C
12,76Kg/cm²
16 Kg/cm²
24 Kg/cm²
300 to 10,000 lts.
Horizontal
Semielliptical, in a single piece
350 to 1,500 mm.
1.000 to 6,000 mm.
ASTM-516 Gr.70
1/4"
2(two)
2(two) |
|
| CONNECTION |
| |
Quantity |
| Liquid inlet
Vacumm line
Equalización line
Air purge
Pressure gauge
Dual safety valve
Liquid outlet
Oil purge
Reflex visual level control
|
1
1
1
1
1
1
1
1
2 |
|
|
