CEILING TYPE EVAPORATOR versión en español
spanish version

• For ammonia or Freon systems.
• For cold and freezing chambers.
• Own manufacture and design.
• Standard models and on demand.
• Coils for refrigeration cabins.
• Recycling of used evaporators.
• Evaporators for glycol systems.

COILS
Manufactured with seam steel tubing Ø 1/2".

FINS
Flat type, steel manufactured, 0.34 mm thick, pressed assemblied.

EVAPORATING BLOCK
The block is air tested, submerged in water, up to a pressure of 25 Kg/cm², before and after the hot dipped galvanized process is done. Minimun galvanized thickness: 50 microns.

MOTO FAN ASSEMBLIES
Each one compound by an axial flow helix, direct-connected to the electrical motor. Hoop and support plate made of steel, commercial quality, hot dipped galvanized.
Alternative in stainless steel AISI 304.

DEFROSTING SYSTEM
By means of water and/or hot gas.

SUPPORT STRUCTURE
Manufactured with regular steel structural shapes, hot dipped galvanized, with the necessary cross section in order to support the equipment, the air box and the water-drainage tray.

EXTERNAL CLOSING
Manufacturated with galvanized steel sheet Nº 20, with inner reinforcements. Alternative in stainless steel sheet AISI 304, or white PRFV 2.3 mm thick.

WATER-DRAINAGE TRAY
Manufatured in steel, hot dipped galvanized.
Alternative: stainless steel AISI 304.
Option for freezing chambers evaporators: Isolated tray with polystyrene or polyurethane, including a coil for hot gas defrosting system. Final coating in white PRFV 2.3 mm.

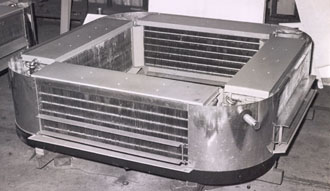

Evaporador de techo

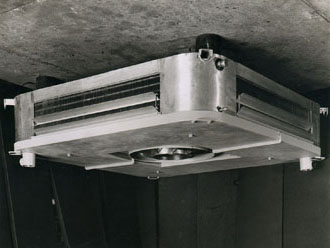

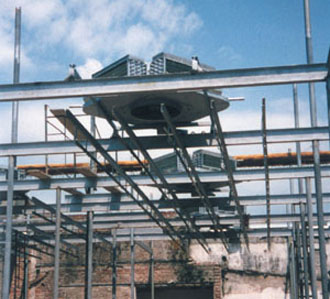

Instalación evaporadores de techo
Evaporadores de techo

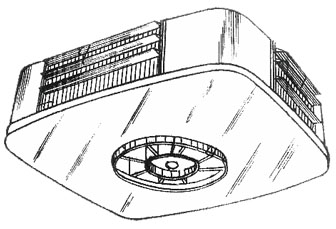

EVAPORDOR OF CEILING
MODEL REFRIN QUODS

Patent Argentina Nº 114818

TECHNICAL EVAPORATING UNITS REFRIN Q-DATOS
UNIDAD
SUP.
Q. AIRE
POTENCIA
CANT.
POTENCIA
Q.AIRE
SUP.
M³/MIN
HP
RPM
VENT.
HP
RPM
M³/MIN
SEP.ALETA
10







12
Q3
105
280
2.0
1500
UNO
0.75
900
185
90
Q4
140
480
4.0
1500
UNO
3.00
900
400
120
Q5
175
600
5.5
1500
UNO
4.00
900
510
150
Q6
215
720
7.5
1500
UNO
5.50
900
650
175
Q8
245
810
5.5
900
UNO
5.50
900
810
205
FOR SERVICE OF CONGEALED TO ADD (f) To The UNIT
FOR SERVICE OF COOLED TO ADD (c) To The UNIT

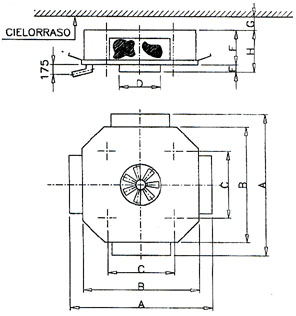

GENERAL DIMENSIONS OF UNITS Q
UNIDAD
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
F(mm)
G(mm)
H(mm)
Q3
2450
2000
1150
700
120
620
100
720
Q4
2600
2200
1400
900
120
620
100
720
Q5
3150
2750
1650
900
150
620
100
720
Q6
3250
2850
2050
900
150
620
100
720
Q8
3400
3000
2200
100
180
620
100
720
To consult by equipment of greater superfice
