WALL TYPE EVAPORATOR versión en español
spanish version

• For ammonia or Freon systems.
• For cold and freezing chambers.
• Own manufacture and design.
• Standard models and on demand.
• Coils for refrigeration cabins.
• Recycling of used evaporators.
• Evaporators for glycol systems.

COILS
Manufactured with seam steel tubing Ø 1/2".

FINS
Flat type, steel manufactured, 0.34 mm thick, pressed assemblied.

EVAPORATING BLOCK
The block is air tested, submerged in water, up to a pressure of 25 Kg/cm², before and after the hot dipped galvanized process is done. Minimun galvanized thickness: 50 microns.


MOTO FAN ASSEMBLIES
Each one compound by an axial flow helix, direct-connected to the electrical motor. Hoop and support plate made of steel, commercial quality, hot dipped galvanized.
Alternative in stainless steel AISI 304.


DEFROSTING SYSTEM
By means of water and/or hot gas.

SUPPORT STRUCTURE
Manufactured with regular steel structural shapes, hot dipped galvanized, with the necessary cross section in order to support the equipment, the air box and the water-drainage tray.

EXTERNAL CLOSING
Manufacturated with galvanized steel sheet Nº 20, with inner reinforcements. Alternative in stainless steel sheet AISI 304, or white PRFV 2.3 mm thick.

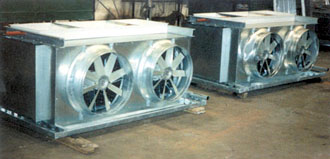

Evaporators at Refrin workshop

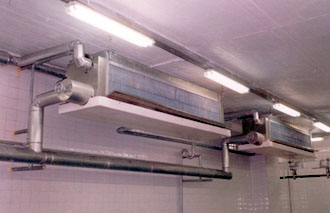

Wall type evaporators

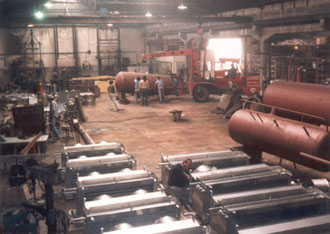

Evaporators at Refrin workshop

WATER-DRAINAGE TRAY
Manufatured in steel, hot dipped galvanized.
Alternative: stainless steel AISI 304.
Option for freezing chambers evaporators: Isolated tray with polystyrene or polyurethane, including a coil for hot gas defrosting system. Final coating in white PRFV 2.3 mm.
