WATER-DRAINAGE TRAY
Steel manufactured, S.A.E. 1010, sheet of 1/8" thickness, covered with chlorinated rubber paint.

Alternative: galvanized steel, stainless steel A.I.S.I. 304, or F.R.P.

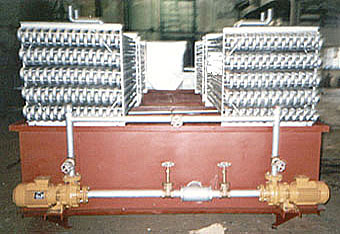

WATER DISTRIBUTION SYSTEM
Exclusive design that allows water to wet the external face of all the tubes, by means of a recirculating water pump, in order to obtain maximum evaporation.

AXIAL FANS
Fused aluminum fans of maximum flow in order to improve evaporation efficiency. Framework in steel, hot-dip galvanized.

CASING
Completly manufactured in galvanized steel sheet, 1.5mm thickness. All bolts are cadminum plated.
Alternative: F.R.P. or stainless steel.

DRIFT ELIMINATOR
Completely manufactured in high impact polyethylene, highly efficient, with minimum loss of head, totally demountable.
